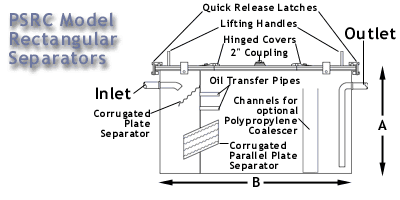

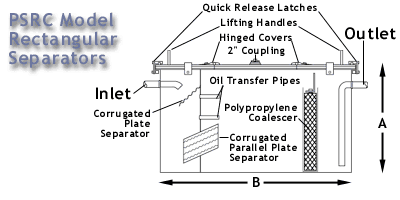

PSRC Model Rectangular Separators
How PSI Separators Work
MODEL NO. VOLUME Gallons FLOW RATES gpm DIMENSIONS INLET/OUTLET
Height(A) Length(B) Width
100 135 15 3' 4' 1'-6" 3" NPT
200 270 30 3' 8' 1'-6" 3" NPT
300 340 40 3' 10' 1'-6" 4" Flange
500 540 60 3' 8' 3' 4" Flange
900 900 100 4' 10' 3' 6" Flange
1500 1440 140 4' 12' 4' 6" Flange
2000 2000 180 4' 16' 4' 6" Flange


MODEL NO. VOLUME Gallons FLOW RATES gpm DIMENSIONS INLET/OUTLET
Height(A) Length(B) Width
100 135 20 3' 4' 1'-6" 3" NPT
200 270 40 3' 8' 1'-6" 3" NPT
300 340 60 3' 10' 1'-6" 4" Flange
500 540 80 3' 8' 3' 4" Flange
900 900 120 4' 10' 3' 6" Flange
1500 1440 160 4' 12' 4' 6" Flange
2000 2000 200 4' 16' 4' 6" Flange
